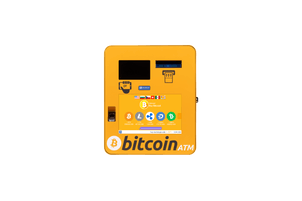

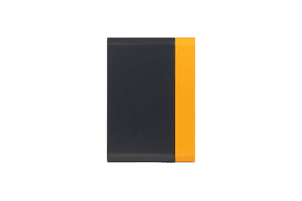

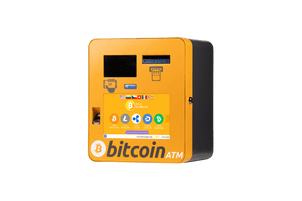

The BATMTwo is our most popular model to date. The BATMTwo Classic was introduced in February 2014 and was an immediate success. Over the years, the BATMTwo platform has seen numerous improvements such as an added fingerprint reader, ethernet connection, point of sale features, altcoin vending, a metal stand, many new software features, and the introduction of the BATMTwo Large ATM that offers double the banknote capacity compared to the BATMTwo Classic model.

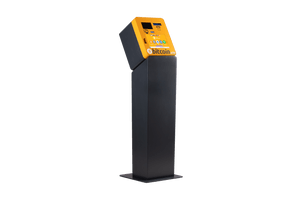

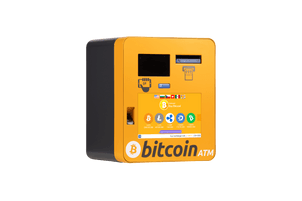

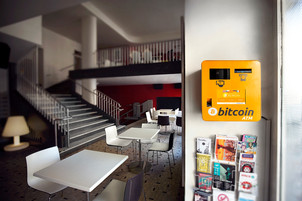

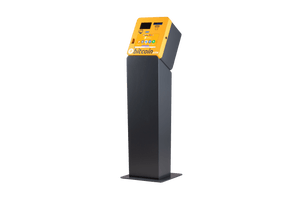

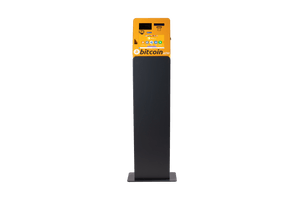

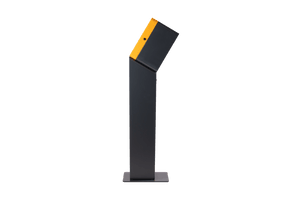

The BATMTwo Classic is primarily designed to be mounted on a wall. In the event wall space is not available at the location, you can mount the machine on our specially designed BATMTwo Stand which can be bolted into the floor for a secure installation. The BATMTwo Large model, because of its deeper size, is better mounted on a BATMTwo Stand.
The BATMTwo models are equipped with a high-end banknote validator (also called a bill acceptor) used in many casinos around the world. The validator in the BATMTwo will flawlessly identify fake and damaged banknotes, protecting your business from crooks. Our GENERAL BYTES Bitcoin ATMs receive new software updates twice a month so your system is always up to date.
The BATMTwo must be connected to the GENERAL BYTES server software called CAS. This server software allows you to exchange and buy back coins, manage your wallets, configuration, fleet management, and much more.
We recommend our clients install the server software (BATMServer / CAS) on their own hardware or on the cloud. For example, digitalocean.com (only $20 USD / month, click here for 10 USD discount). If you prefer not to operate your own server we can run it for you for a small fee of one-half percent (0.5%) of all cash transactions.
Both BATMTwo Classic and BATMTwo Large Bitcoin and cryptocurrency ATM models are unidirectional. This means that the ATM will convert cash to cryptocurrency only. If you require a bi-directional machine (crypto to cash and cash to crypto) we suggest you look at our BATMThree line of ATM units.
40+ cryptocurrencies supported. BTC (Bitcoin), BCH (Bitcoin Cash), ETH (Ethereum), LTC (Litecoin), DASH, XMR (Monero), DOGE (Dogecoin), ANT (Aragon Network Token), BTXX, BURST, CLOAK, SMART (SmartCash), FTO, GRS, ICG, LEO, LINDA, LSK, MAX (MaxCoin), MEC, MKR (Maker), NBT, NXT, PAC, REP, START, SYS, TKN, USDT, VIA, WDC, XMR, XZC.
The GENERAL BYTES developers typically do not implement alternative coins on request. Adding a new coin explicitly depends on the community and developers of those coins.
You can implement support for any coin or extend current functionality with Open API hosted on Github.

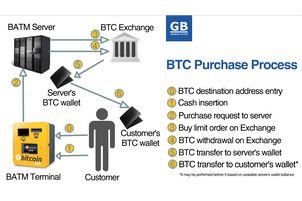

Secure by Design
- The Bitcoin ATM Terminal only communicates with the server over HTTPS.
- The BATM / CAS server communicates with cryptocurrency exchanges and hot wallets.
- The ATM does not store any cryptocurrency itself.
- Hot wallets for the ATM can be online or self-hosted.
No volatility risks

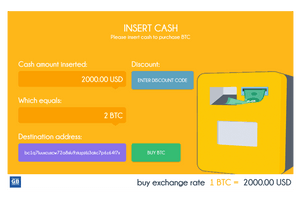

Unlike other Bitcoin ATMs, purchases are made on the configured cryptocurrency exchange at the time of cash insertion. This reduces volatility risks for an operator. Operators can also choose to run in a standalone mode with no exchange involved, a perfect option for those who already own the Bitcoin they want to sell. Exchange rates are updated every 30 seconds.
Supported exchanges: See table below
Supported hot wallets: See table below
Remote Management and Monitoring
Terminal configuration is retrieved from the server by the ATM. Configuration options on the server include online terminal status, current cash box contents, exchange rate, cash transaction limits (per hour, per day, per month), customer behavior, performed transactions and their status. The server sends end-user SMS and/or email notifications to the operator regarding certain events, such as when transactions are performed or when a specified level of cash in the terminal has been reached.
Remote Software Upgrade
Future software updates are distributed over the internet without the need for user intervention. This dramatically reduces operator expenses as there is no need to visit the ATM in person to perform an upgrade of the machine.
AML and KYC
A customer’s identity can (optionally) be checked using the fingerprint reader, cellphone number verification, ID card scan, or selfie verification to increase customer cash limits. AML / KYC laws differ throughout the world, but GENERAL BYTES is the only manufacturer flexible enough to accommodate even the most stringent AML / KYC regulations.
The GENERAL BYTES ATM server is also capable of obtaining customer name and address details based on a cell phone number, and run instant background checks against terrorist watch lists. This is required for some markets, most notably the USA.
Your ATM can notify you when cash inside of the machine reaches a certain threshold, when the ATM is offline for more than one hour, or whenever a transaction has been made. This way you know exactly what’s happening with your ATM wherever you are.
Send receipts by SMS or email.
Send bitcoins via SMS (recipient will receive private key).
EXCHANGES & WALLETS
|SUPPORTED EXCHANGE||SUPPORTED WALLET|
|Power consumption||20W (10W in idle state)|
|Power input||AC 100-240V 50-60Hz (Japan, US, Australia, Europe, Asia and other)|
|Internet connectivity||WiFi (b/g/n) 2,4GHz+5GHz + Ethernet 1000Mbit|
|Currencies supported||More than 120 (including USD, EUR..) + Multicurrency|

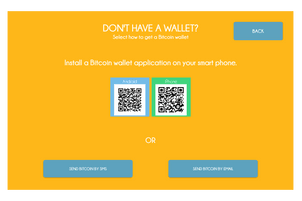

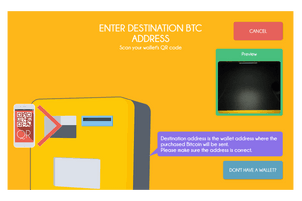

|Crypto address entry||QR code scanner or e-mail address or cell phone number|
|Languages||Chinese (ZH), Croatian (HR), Czech (CS), Dutch (NL), English (EN), French (FR), Georgian (KA), German (DE), Hungarian (HU), Italian (IT), Japanese (JA), Kazakh (KK), Korean (KO), Latvian (LV), Lithuanian (LT), Norwegian (NO), Polish (PL), Romanian (RO), Russian (RU), Serbian (SR), Slovenian (SL), Slovakian (SK), Spanish (ES), Swiss German (DE-CH), Ukrainian (UK), Vietnamese (VN) or translate into any other language yourself!|
|Dimensions||BATMTwo Classic: 38 cm height x 32 cm width x 28 cm depth / 14.96 height x 12.6 width x 11.02 depth inches.|
|Mounting options||BATMTwo Classic is designed to be mounted on a wall (mounting screws and tools are included) or free-standing using the optional BATMTwo Stand.|
|Cash box capacity||BATMTwo Classic: up to 600 banknotes|
|Security||Two high-security standard cam locks. One for the main door, second for inside door. The inner door lock can be swapped with an auditable lock. Supported locks are the A-Series 61xx and 31xx from Sargent & Greenleaf.|
|CE Conformity||European Directives: 206/95/EC, 2004/108/EC|
|Standards||EN 60335-1:12, EN 60335-2-82:03+A1:08, EN 55022:10, EN 55024:10, EN 61000-3-2:06+A1:09+A2:09, EN 61000-3-3:08|
|Weight||BATMTwo Classic: 23kg / 50lbs. BATMTwo Stand: 33kg / 73lbs. Optionally add your own additional weights in the BATMTwo Stand base.|
